The Scooter Revolution has Arrived!

Weight

Speed

Burn Time

Thrust

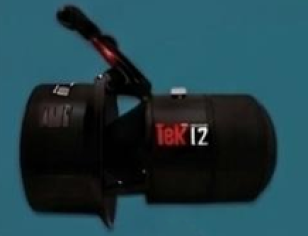

Click to Expand

10 KG

LB 22,04

2

120
MIN

Cruise
Speed

20
KG

LB 44

Burn Time

20
KG

LB 44

Thrust

120
MIN

Cruise
Speed

Technical Specifications

Length 440 mm. (inch 17,34)
Height 440 mm. (inch 15,75)
Width 310 mm. (inch 12,20)
Nozzle diameter 440 mm. (inch 12,20)
Body diameter 214 mm. (inch 8,42)
Weight 10 kg. (lb 22)
Buoyancy in fresh water Neutral
Battery Type Lithium
Battery capacity 300 WH
Charging time 4 Hours
Burn time maximum speed 60 Min.
Burn time cruise speed 120 Min.
Battery voltage 24V
Maximum depth 130 Mts (ft 426,5)
Thrust 20 Kg. (lb 44)
Speed control 2 Speeds
Click to Expand

10 KG

LB 22,04

2

120
MIN

Cruise
Speed

20
KG

LB 44

Burn Time

20
KG

LB 44

Thrust

120
MIN

Cruise
Speed

Technical Specifications

Length 440 mm. (inch 17,34)
Height 440 mm. (inch 15,75)
Width 310 mm. (inch 12,20)
Nozzle diameter 440 mm. (inch 12,20)
Body diameter 214 mm. (inch 8,42)
Weight 10 kg. (lb 22)
Buoyancy in fresh water Neutral
Battery Type Lithium
Battery capacity 300 WH
Charging time 4 Hours
Burn time maximum speed 60 Min.
Burn time cruise speed 120 Min.
Battery voltage 24V
Maximum depth 130 Mts (ft 426,5)
Thrust 20 Kg. (lb 44)
Speed control 2 Speeds
Battery charge Internal and External

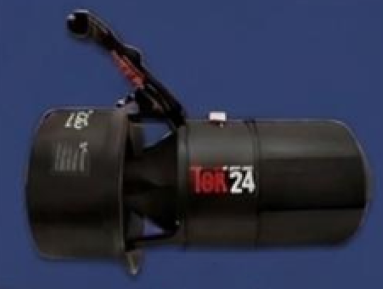

Click to Expand

12,7 KG

LB 27,99

2

205
MIN

Cruise
Speed

20
KG

LB 44

Burn Time

20
KG

LB 44

Thrust

205
MIN

Cruise
Speed

Technical Specifications

Length 495 mm. (inch 19,5)
Height 400 mm. (inch 15,75)
Width 310 mm. (inch 12,20)
Nozzle diameter 440 mm. (inch 12,20)
Body diameter 214 mm. (inch 8,42)
Weight 10 kg. (lb 22)
Buoyancy in fresh water Neutral
Battery Type Lithium
Battery capacity 528 WH
Charging time 7 Hours
Burn time maximum speed 120 Min.
Burn time cruise speed 205 Min.
Battery voltage 24V
Maximum depth 130 Mts (ft 426,5)
Thrust 20 Kg. (lb 44)
Speed control 2 Speeds
Battery charge Internal and External

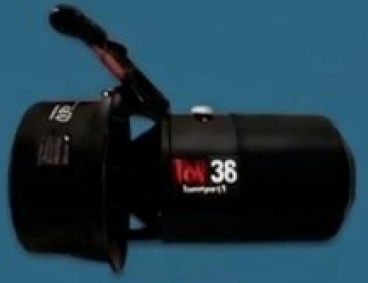

Click to Expand

12,4 KG

LB 27,33

4

250
MIN

Cruise
Speed

25
KG

LB 55,11

Burn Time

25
KG

LB 55,11

Thrust

250
MIN

Cruise
Speed

Technical Specifications

Length 490 mm.
Height 400 mm.
Width 310 mm.
Body diameter 310 mm.
Weight 12,430 kg.
Buoyancy in fresh water Neutral
Battery Type Lithium
Battery capacity 756 WH
Charging time 7 Hours
Duracion bateria primera velocidad 250Min.
Duracion bateria segunda velocidad 170 Min.
Duracion bateria tercera velocidad 120 Min.
Duracion bateria cuarta velocidad 90 Min.
Battery voltage 36V
Maximum depth 130 Mts
Thrust 25 Kg.
Acceleration control 4 Speeds
Battery charge External

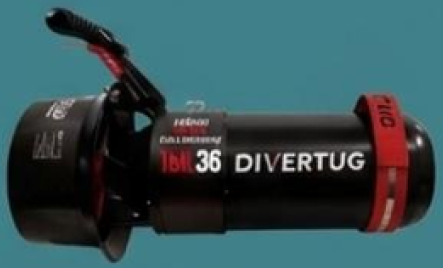

Click to Expand

16,8 KG

LB 27,33

4

470
MIN

Cruise
Speed

25
KG

LB 55,11

Burn Time

25
KG

LB 55,11

Thrust

470
MIN

Cruise
Speed

Technical Specifications

Length 660 mm.
Height 400 mm.
Width 310 mm.
Nozzle diameter 310 mm.
Body diameter 215 mm.
Weight 16,8 kg.
Buoyancy in fresh water Neutral
Battery Type Lithium
Battery capacity 1152 WH
Charging time 7 Hours
Battery life at maximum speed 140 Min.
Battery life at cruising speed 470 Min. (low speed) – 300 Min (Medium speed)
Battery voltage 36V
Maximum depth 170 Mts
Thrust 25 Kg.
Acceleration control 4 Speeds
Battery charge External – Internal
